Sale
Launch X431 CR3001 Support Full OBDII/EOBD function Creader 3001 diagnostic tool Multilingual code reader scanner PK CR319 OM123
$22.26 – $24.94
- Brand Name: LAUNCH
- Certification: CE
- Origin: CN(Origin)
- Software Version: newest
- Language: German
- Language: French
- Language: Russian
- Language: Italian
- Language: english
- Language: Spanish
- Software Update: Yes
- Hardware Version: newest
- Item Type: Code Readers & Scan Tools
- Creader 3001 feature 2: Freeze data
- Creader 3001 feature 1: I/M readiness
- Creader 3001 feature 4: auto diagnostic tool
- Techincal Support: Free and in time
- Creader 3001 function: Support full OBDII/EOBD function
- Creader 3001 feature 3: code reader scanner
LAUNCHÂ X431 CReader 3001 Full OBD2 EOBD Code Reader Scanner
Product Introduction:
CReader 3001 provides full OBDII/EOBD diagnostic functions and meets protocols such as ISO9141-2, ISO14230-4, SAEJ1850, and ISO15765-4.
The full function of CR3001 (Support Full OBD2 functions, Engine Check including ) :
Reading Codes:Show the detailed description of the Diagnostic Trouble Code (DTCs)
Erasing Codes & Reset:Turns off Check Engine Light (MIL), clears codes and resets monitors.
Data Stream:Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
I/M Readiness Status:Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
Read Live Data Stream:Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
View Freeze Frame Data:Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
O2 Sensor Test:Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
On-Board Monitor Test:Retrieves and displays test results for emission-related powertrain components and systems.
Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
Component Test:Certain vehicle components can be actuated by commands sent from the scanner to test their operability

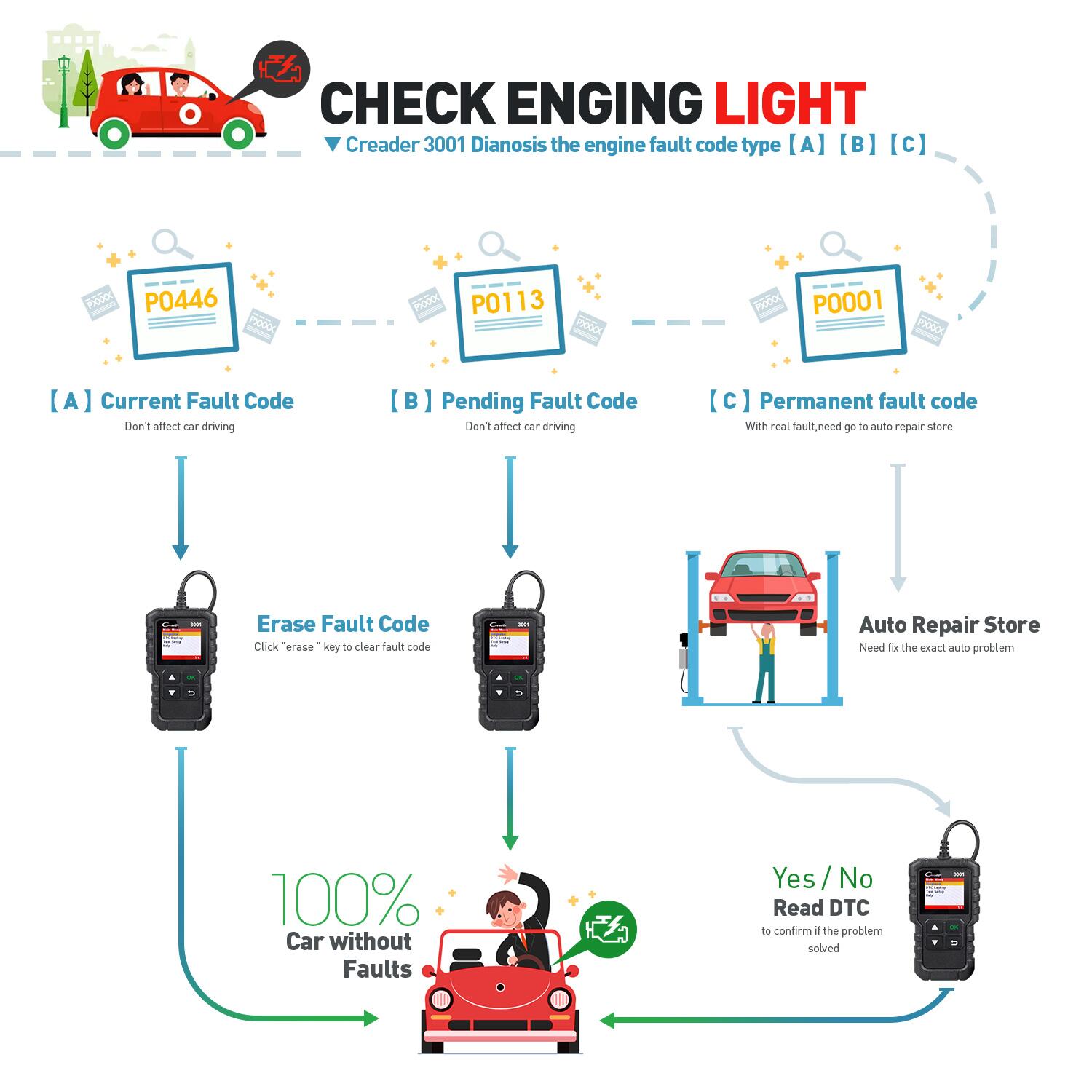

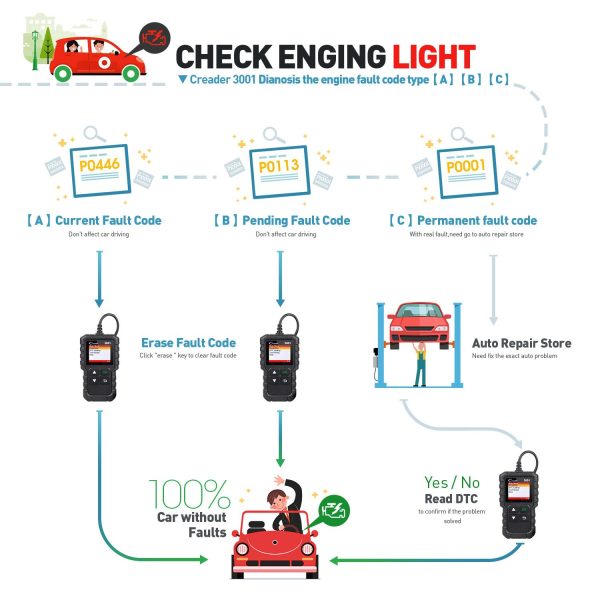

Turn Off ''Check Engine'' Light
Parts might cause your check engine light on include:
1.  Gas Cap 2. Oxygen Sensor 3. Air Fuel Ratio Sensor 4. Mass Air Flow Sensor 5. Ignition Coils 6. Spark Plug Wires 7. Spark Plugs 8. Thermostat 9. EGR Valve 10. Evaporatative Emission Canister Purge Valve(EVAP) 11. Catalytic Converter.
If the engine light is not turned off in time
it will Cause Serious environmental pollution , Increased fuel consumption,Increased engine noise.Increased in temperature , ect
Why choose CR3001?
How to verify whether the vehicle will pass the emission test with this code reader?
After entering the I/M Readiness, there will be 10 results on the list. Misfire monitor, fuel system, componentmonitor, catalyst monitor, heated catalyst, EVAP system, secondary air sys, 02 sensor, O2 sensor heater EGRand/or WVT. There will be an OK if each of them works fine. [Not all vehicles have these 10 parts]

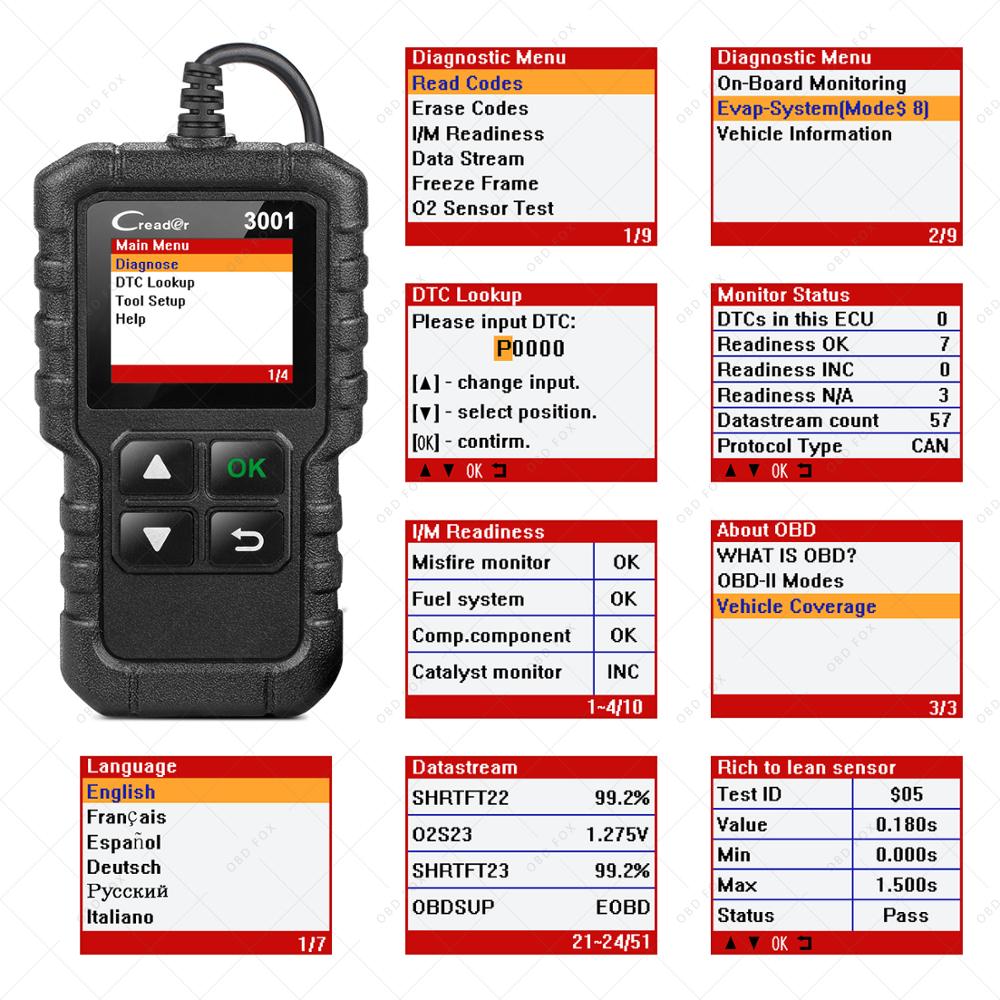

Screen Display
Support Language:Â English , French , Russian , Spanish ,German, Italian ,Portuguese
How to change language
Support Car Models for OBDII diagnostic function:
(Note: CR3001only Support 12V Gasoline& Diesel, Does not support 24V Truck)
American Car :
Need Standard OBD2 Protocols from 2000 to now
for Chrysler , for Ford, for GM, For Jeep …
European Car :
Need Standard OBD2 Protocols from 2003 to now
For Alfa romeo , for SAAB ,for Acura , for Opel , for Audi for Seat , for Peugeot , for Renault
For Bentley , for Skoda , for Daewoo , for Benz , for Daihatsu , for Land Rover , for BMW , for Vauxhall , for Citroen , for Volvo , for Fiat , for VW , for Ford , for Jaguar…
Japanese/Korean Car:
Need Standard OBD2 Protocols from 2006 to now
for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai , for Dacia , for Lexus , for Mazda, for Nissan, for Subaru , for Suzuki, for Toyota…
Chinese Car:
Need Standard OBD2 Protocols from 2009 to now
CR3001 Support OBD 2 protocols car :
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
Easy to Carry
The OBD2 scanner's mini size fits comfortably in the palm of your hand. so that you can carry it around no matter in garage or on a trip.
USER-FRIENDLY
Dust Cap Design : protect the connector from dust, water, resistant oil and dirtly , no worries while you donrsquot use it .
Specifications:
Screen :1.77 " TFT, 160*128dpi
Voltage Range: 9-18V
Operating Temperature :0℃ -50 ℃ (32 ℉ -122 ℉ )
Environment Temperature -20 ℃ -70 ℃ (-4 ℉ -158 ℉ )
Dimension :Â 118mm*68mm*22.3mm(4.65" *2.68 " *0.88 " )
Weight:Â <200g
